Paragon Fire Protection
Newly installed unpainted fire sprinkler head, ready to operate at its listed activation temperature

Painted-Over Sprinkler Head — NFPA 25 Replacement

Sprinkler head found fully painted over during inspection — a per-NFPA 25 mandatory replacement, swapped for a new listed head.

Dallas–Fort Worth, TX 2025

The rule

NFPA 25 is explicit: any sprinkler head that’s been painted (other than the factory finish) has to be replaced. Paint changes the activation temperature, bonds the fusible link, and disqualifies the listing. It’s a no-judgment call on the inspection report.

The fix

Pulled the painted head, installed a new listed head of the same temperature rating and K-factor, and documented the replacement in the inspection report. The painter on the original job didn’t know — most don’t. We flag this every time we see it.

The takeaway

If a contractor paints a building and the sprinklers get the same finish as the ceiling, they’re now non-compliant. Catching it on inspection is the cheapest possible outcome; finding it during a fire is the worst.

What changed

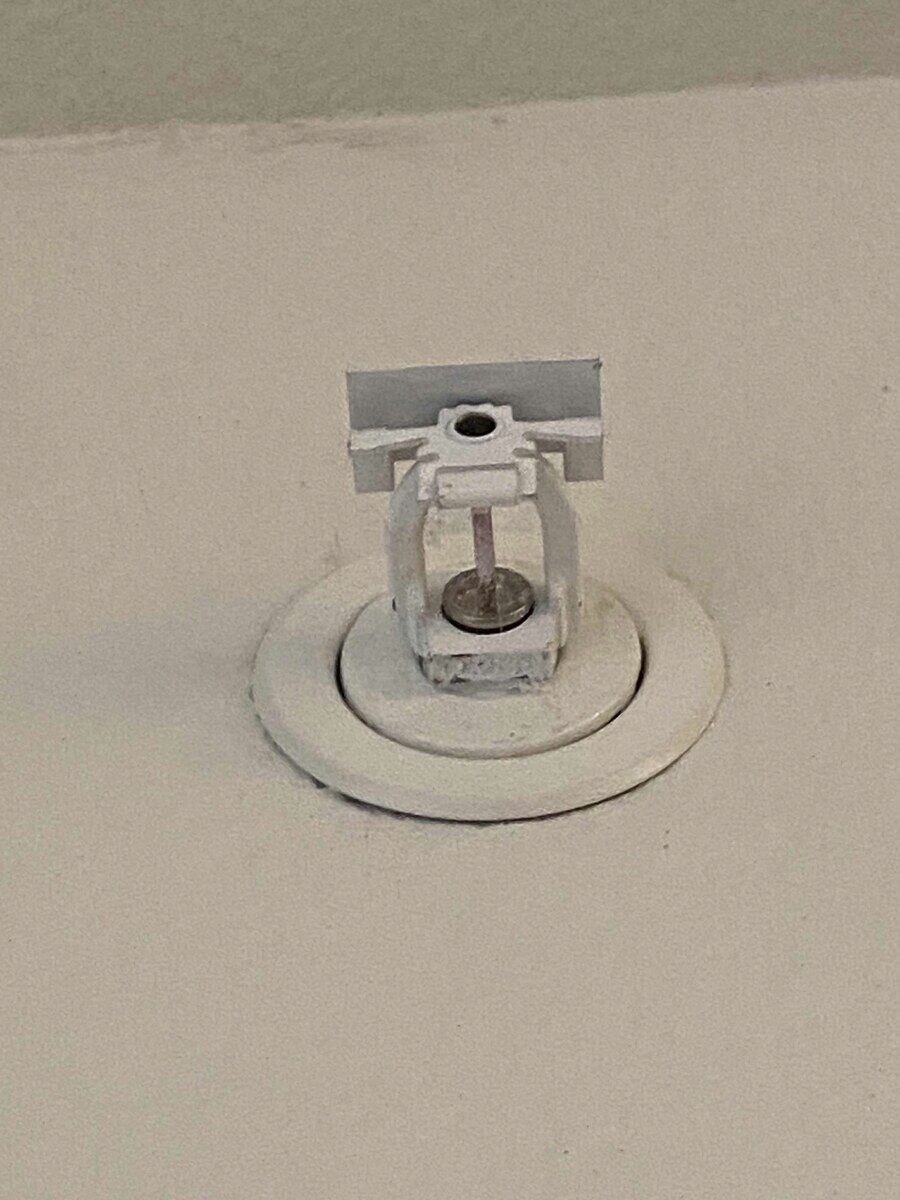

Before: Sprinkler head — fully painted over by a previous building paint job → new listed head, mandatory replacement per NFPA 25.
Before

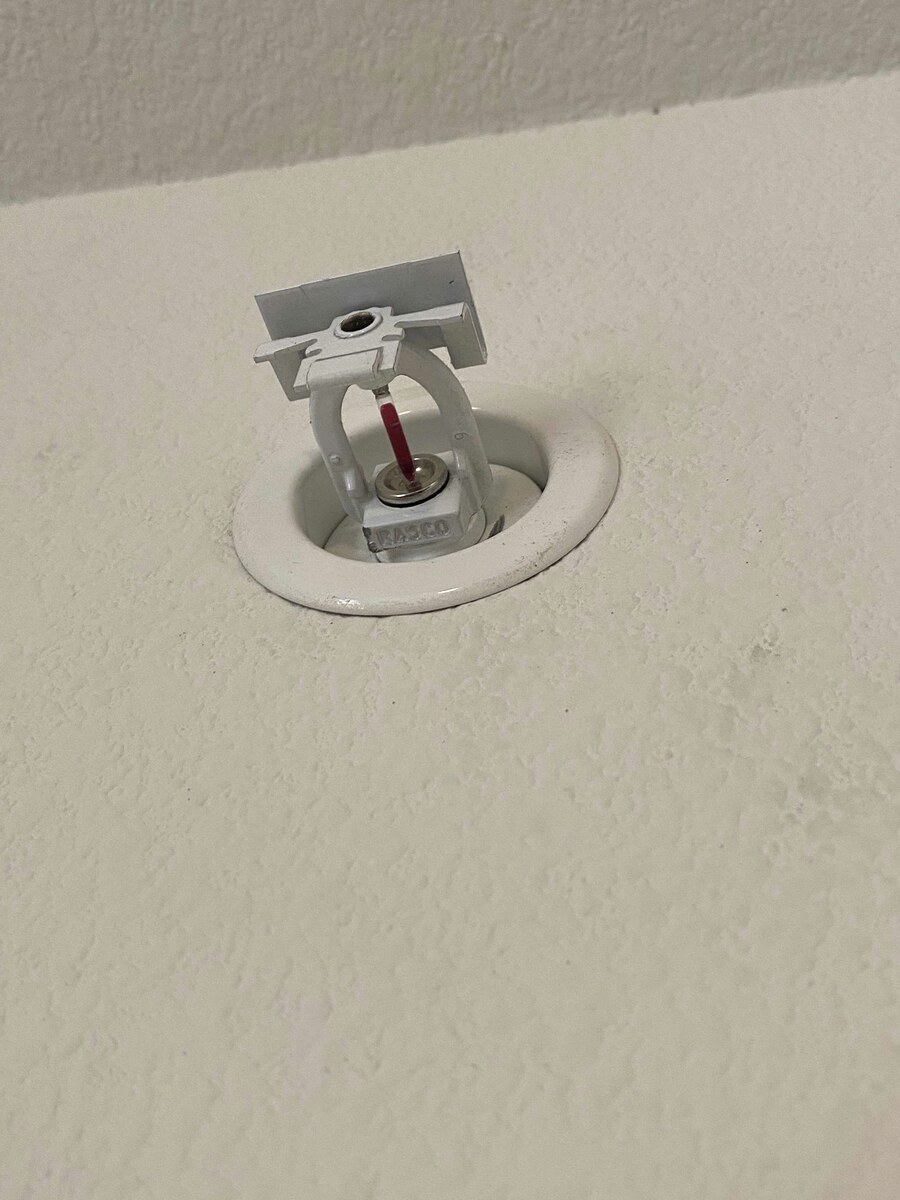

After: Sprinkler head — fully painted over by a previous building paint job → new listed head, mandatory replacement per NFPA 25.
After
Sprinkler head — fully painted over by a previous building paint job → new listed head, mandatory replacement per NFPA 25.
